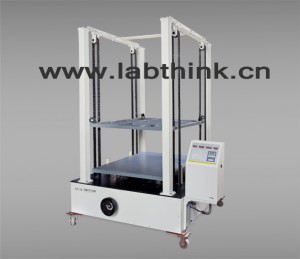

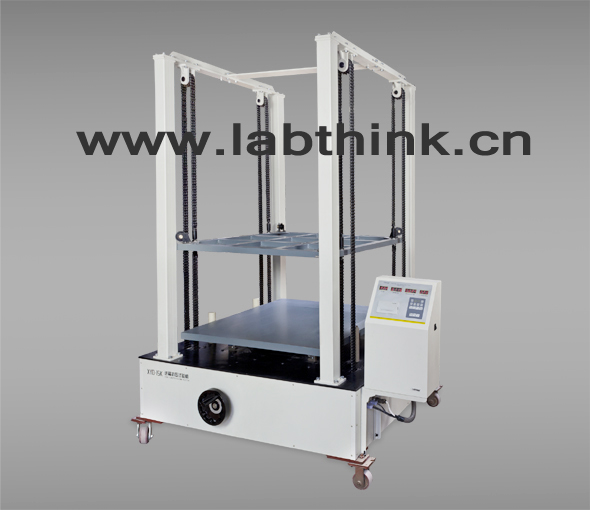

Labthink Box Compression Tester XYD-15K provides the most accurate means of determining the top-to-bottom strength of packages. This system is specifically designed to quantify box performance so that the effect of various board mediums, closures and interior partitions can be factually compared by means of “Load Sharing” analysis.

Applications
Packaging, Corrugated Boxes and Cartons

Standards
ISO 12048, ASTM D642, ASTM D4169, TAPPI T804, JIS Z0212

Features
Ø Controlled by micro computer, Touch screen user interface, Automated operation
Ø Real-time display of testing numbering and pressure, sample distortion and initial pressure
Ø Overload protection, Overtravel protection and error alert
Ø Light-weight design, suitable for various floor loads

Technical Specifications:
Max Load Capacity: 15KN or 45KN
Accuracy: +/- 1% of reading
Test Speed: 5mm/min, 10mm/min, 12mm/min
Force resolution: 1daN
Deformation resolution: 0.1mm
Test Space: 1 m(L) x 1 m(W) x 1.3 m(H)
Instrument Size: 1.2 m(L) x 1.5 m(W) x 2.3 m(H)
Net weight: 800kg

• Compression Strength Testing for Corrugated Paper Boxes: We hereby take Labthink XYD-15K Box Compression Tester for introduction. When testing, place the corrugated box in between the compression plates of XYD-15K Box Compression Tester; and then, set the speed and start the test until the occurrence of box breakage. The pressure is the compression strength in kN. When doing such tests, a preset pressure, normally 220N, is a must before testing.

• Stacking Tests of Corrugated Boxes: During Transportation, corrugated boxes needs to be stored in the form of stack. The boxes at the bottom endure more pressure than the upper ones. In order to avoid collapse, proper compression strength is needed when stacking. Therefore, stacking testing and maximum compression strength are of great importance. Labthink XYD-15K Box Compression Tester has stack testing function, and can output stacking test result directly.
