Tensile Tester | Box Compression Tester | Digital Torque Tester » torque tester http://www.tensile-and-elongation.com Tensile Tester is applicable in the test of physical mechanical properties of plastic films, laminated materials, adhesives, adhesive tapes, adhesive bandage (plaster), release paper, protective film, leather, rubber and paper fiber, etc. Fri, 13 Feb 2026 09:25:23 +0000 en hourly 1 http://wordpress.org/?v=3.0.3 Cap/Closure Torque Strength Testing for Beverage Bottles http://www.tensile-and-elongation.com/capclosure-torque-strength-testing-for-beverage-bottles.html http://www.tensile-and-elongation.com/capclosure-torque-strength-testing-for-beverage-bottles.html#comments Wed, 23 Jan 2013 02:17:54 +0000 trade http://www.tensile-and-elongation.com/?p=95 Mineral water, carbonated soft drink and alcoholic beverage is usually packaged in a variety of sizes of plastic (PET) bottles and it is essential that the caps on their bottles are easy to open, while at the same time applied tightly enough to ensure the bottles do not leak.
To guarantee the quality of their packaging, manufacturers of beverage should test their bottles compliance with domestic and international standards.

International Standards
ASTM D2063 — Standard Test Methods for Measurement of Torque Retention for Packages with Continuous Thread Closures Using Non-Automated (Manual) Torque Testing Equipment
ASTM D3198 — Standard Test Method for Application and Removal Torque of Threaded or Lug Style Closures
ASTM D3474 — Standard Practice for Calibration and Use of Torque Meters Used in Packaging Applications

Torque Strength Tester From LabthinkApparatus
We recommend Labthink NJY-20 Digital Torque Tester for this torque strength testing of bottle caps. The easy-to-use 20N.m capacity Torque Tester has proven to be a good choice for open force and close force of bottle capes.
Labthink NJY-20 is a precision instrument that measures OPEN and CLOSE torque strength for bottlers, food and beverage companies, and others who need to measure closure torque.
1) Its portable design make NJY-20 can be placed on the production line or into the laboratory
2) Peek Value real-time display on the LCD screen
3) Special design and precise sensor make sure the accuracy test results (up to 1% of reading) and high resolution 0.001Nm
For more information about Torque Strength Testing of Bottles caps, please contact us via trade5@labthink.cn or call us on 86-531-85060139
]]> http://www.tensile-and-elongation.com/capclosure-torque-strength-testing-for-beverage-bottles.html/feed 1 Digital Bottle Cap Torque Tester http://www.tensile-and-elongation.com/digital-bottle-cap-torque-tester.html http://www.tensile-and-elongation.com/digital-bottle-cap-torque-tester.html#comments Thu, 11 Oct 2012 07:33:25 +0000 trade http://www.tensile-and-elongation.com/?p=92 In packaging control, the Torque Testing consists in measuring the force to be applied when screwing or unscrewing a bottle, glass or tube.

Labthink Digital Bottle Cap Torque Tester is designed with a digital display, and this digital bottle cap torque tester enable both screwing and unscrewing torques to be measured.

Digital Bottle Cap Torque Tester

This Digital Bottle Cap Torque Tester has the following merits:

1. Controlled by micro-computer with menu interface, PVC operation panel and large LCD display
2. Standard Testing Units
3. Peek value can be saved automatically
Technical Specifications of Labthink Digital Bottle Cap Torque Tester
1. Test Range: 20Nm, 40Nm or 50Nm
2. Accuracy: 1% of reading value
3. Resolution: 0.001Nm
4. Clamp Range: Diameter 5~170mm
Applications
1. Bottle Package
2. Flexible Tubes Package
3. Screws
4. Vacuum Flask and Vacuum Cup
Labthink NJY-20 Digital Bottle Cap Torque Tester conforms to various national and international standards:
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034(GB/T 14803), GB/T 17876
]]> http://www.tensile-and-elongation.com/digital-bottle-cap-torque-tester.html/feed 0 Torque Value Testing for Bottle Cap Lock & Open Force http://www.tensile-and-elongation.com/torque-value-testing-for-bottle-cap-lock-open-force.html http://www.tensile-and-elongation.com/torque-value-testing-for-bottle-cap-lock-open-force.html#comments Wed, 27 Jul 2011 07:15:55 +0000 admin http://www.tensile-and-elongation.com/?p=66 Bottle cap torque force (bottle cap open and lock force) is one of the main factors affecting the sealing performance. Over torque force would bring great difficulties for open and winding up of bottle cup, and thus, reduce the convenience. Insufficient torque force would affect the seal performance of the container, and may further result in the leakage during transportation. Now, package design is designated to bring more convenience for fast consumption, and easy openness of bottle cap is one of the aims. When dealing such testing, GB/T17876-1999 is the standard, and craft-proof ring should be cut before testing.

The sealing performance of plastic bottle is the most important factor affecting package leakage and product deterioration. Excellent open easiness and sealing performance can be guaranteed through reasonable control of sealing performance and torque value. The barrier property of plastic bottles, including gas transmission quantity and water vapor transmission quantity, should also be controlled so as to guarantee the product quality during shelf-life period.

Further details please feel free to contact Shirley via:
TEL: 0086-531-85061080
FAX: 0086-531-85062108
EMAIL: trade2@labthink.cn
SKYPE: shirley-labthink
MSN: shirleywu_labthink@hotmail.com

More about Labthink(http://www.labthink.cn/en):
Labthink focusing on the laboratory testing instruments R&D and production and laboratory IT services, is dedicated to provide professional quality control solutions for customers in packaging, food, pharmaceutical, medical, daily chemistry, printing, adhesive, automotive, petrochemistry, bioscience, construction, new energy and other industries.

]]> http://www.tensile-and-elongation.com/torque-value-testing-for-bottle-cap-lock-open-force.html/feed 4 Introduction to Performances of Stand-up Package with Spout and Torque Strength Testing of the Cap http://www.tensile-and-elongation.com/introduction-to-performances-of-stand-up-package-with-spout-and-torque-strength-testing-of-the-cap.html http://www.tensile-and-elongation.com/introduction-to-performances-of-stand-up-package-with-spout-and-torque-strength-testing-of-the-cap.html#comments Tue, 26 Apr 2011 07:12:06 +0000 admin http://www.tensile-and-elongation.com/?p=21 Abstract: sealing performance of stand-up package with spout and its open easiness would directly influence the shelf-life of product and its properness for usage. Sealing performance has become a focus of manufacturers to monitor.

In recent years, stand-up package with spout, owing to its multiple open-close cap, low material consumption, high printing standard, low costs in logistics and low disposal quantity, has become a poplar kind of packaging. The sealing performance and torque strength of stand-up package with spout would directly influence the product shelf-life and its properness for usage. Hereafter, we would introduce sealing performance testing of the package and open easiness testing of its cap with the help of Labthink leak tester and torque tester.

1.The Sealing Performance Testing of Stand-up Packaging with Spout

The sealing performance of stand-up packaging with spout refers to the reliability of the packaging’s sealing performance. This test can help evaluate sealing integration of the whole package, so as to avoid leakage, contamination or deterioration caused by inferior sealing performance. There are several testing methods for sealing performance, for which, leak tester is the most common means. Labthink MFY-01 Leak Tester applies vacuum method to maintain 0.5 minute intervals at -30kpa, -50kpa, -70kpa and -90kpa respectively. As to vacuum package, revival is observed after testing. The above-mentioned method is by visual observation, and is a qualitative testing method. As to the leak and seal strength performance testing for stand-up package with spout, instrument of positive method can be used, such as Labthink LSSD-01 Leak and Seal Strength Tester.

2.Torque Strength Testing for the Cap of Stand-up Packaging with Spout

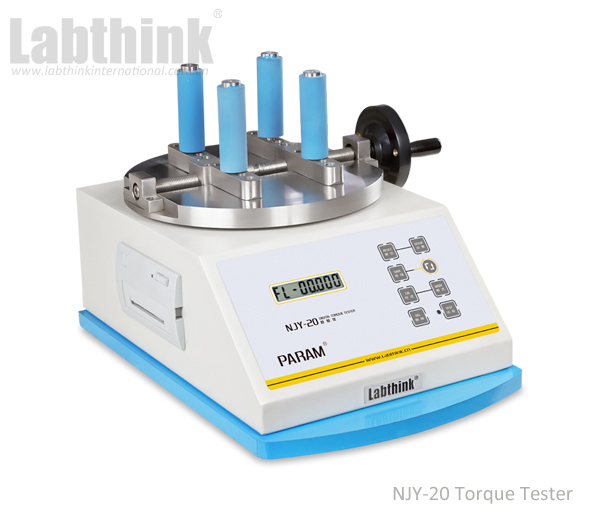

The torque strength for open and close stand-up package with spout is an important index for manufacturers for online and offline observation. Properness of the torque strength would greatly influence transportation and consumption. Labthink NJY-20 Torque Tester is monitored by mini-computer to realize dual testing modes for lock force and open easiness. The instrument is easy to operate with human-friendly interface. It can keep peak value automatically, display in multiple units, and carry out statistical analysis. Labthink NJY-20 Torque Tester is precise in measurement and stable in performance. It’s a necessity for production.

When sealing performance of the package and torque strength of the cap are qualified, other indexes, including sealing strength and barrier property/permeation, should be evaluated, so as to guarantee shelf-life and properness for usage.

For more information, please feel free to contact Shirley via (tel)0086-531-85811021 or visit www.labthink.cn.
